CNC  MACHINERY

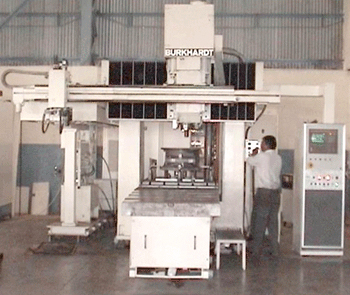

   Vertical Machining Center    BURKHARDT & WEBER
   HYOP 190
   Controller
   Sinumerik 810M
   Table size    1800 mm X 1000 mm
   Travel- X    1800 mm
   Travel- Y    1000 mm
   Travel- Z    650 mm
   Table load maximum    5000 kgs
   Auto Tool changer    48 Tools
Click to enlarge


Click to enlarge

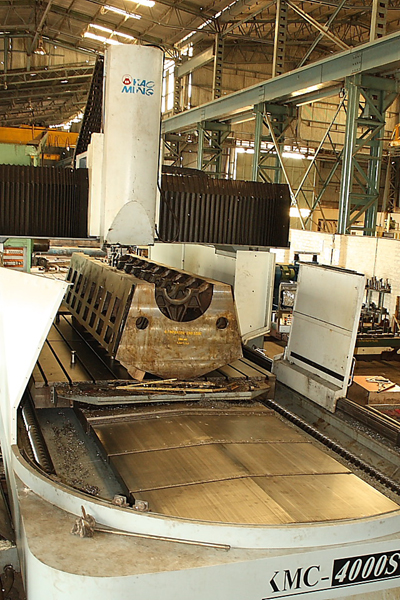

   Vertical Machining Center    KAO  MING
   Controller
   Fanuc 18i
   Table size    4000 mm X 2400 mm
   Travel- X    4250 mm
   Travel- Y    2700 mm
   Travel- Z    950 mm
   Auto Tool changer    60 Tools

   Horizontal Machining Center    SCHARMANN
   Solon 3
   Control
   Fanuc Oi
   No. of pallets    2
   Pallet size    800 mm X 800 mm
   Travel- X    1600 mm
   Travel- Y    1000 mm
   Travel- Z    1000 mm
   Table load maximum    2500 kgs
   Auto Tool changer    86 Tools
Click to enlarge


Click to enlarge

   Horizontal Machining Center    HELLER
   BEA 05
   Controller
   Fanuc Oi
   No. of pallets    2
   Pallet size    400 mm X 400 mm
   Travel- X    480 mm
   Travel- Y    360 mm
   Travel- Z    450 mm
   Auto Tool changer    36 Tools

   Horizontal Machining Center    HULLER  HILLE Nbh 100.1
   Controller
   Sinumerik 810M
   No. of pallets    2
   Pallet size    630 mm X 630 mm
   Travel- X    950 mm
   Travel- Y    650 mm
   Travel- Z    650 mm
   Table load maximum    1200 kgs
   Auto Tool changer    46 Tools
Click to enlarge


CONVENTIONAL MACHINERY

Click to enlarge

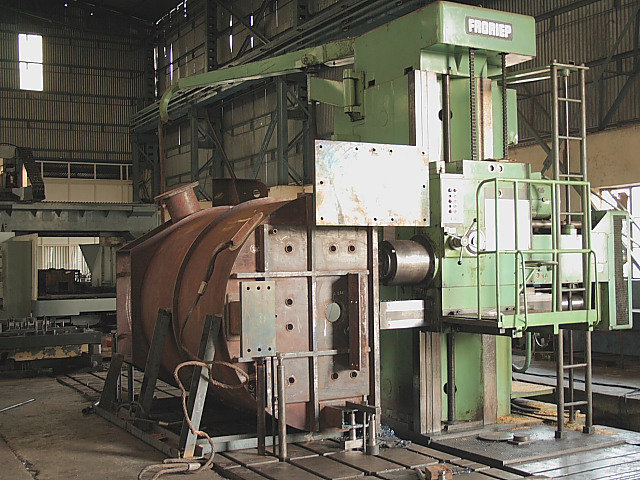

   Horizontal Boring   m/c    FRORIEP
   Table size
   8000 mm X 2400 mm
   Travel- X    6000 mm
   Travel- Y    2200 mm
   Travel- Z    1500 mm
   Milling Ram Travel    1000 mm
   Spindle Dia    160 mm

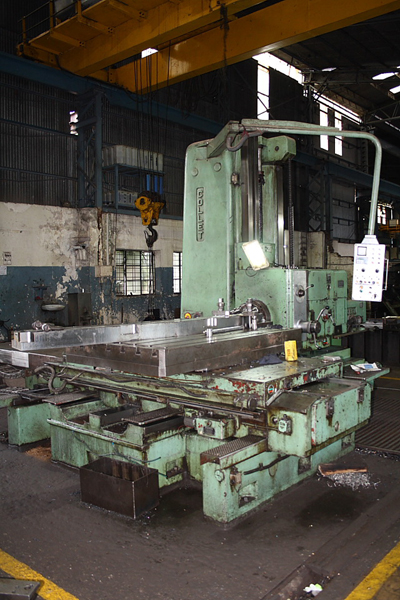

   Horizontal Boring   m/c    COLLET
   Table size
   1800 mm X 1600 mm
   Travel- X    1500 mm
   Travel- Y    1450 mm
   Travel- Z    2250 mm
   Spindle Dia    130 mm
   Digital Read Out    Heidenhen Germany
Click to enlarge


Click to enlarge

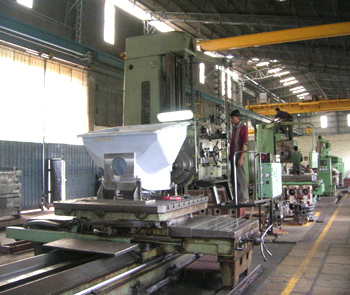

   Horizontal Boring   m/c    COLLET
   Table size
   1800 mm X 1200 mm
   Travel- X    2000 mm
   Travel- Y    1200 mm
   Travel- Z    1850 mm
   Spindle Dia    125 mm
   Digital Read Out    Fagor - Spain

   Jig Boring Machine    SIP
   Table size
   1200 mm X 800 mm
   Travel- X    950 mm
   Travel- Y    800mm
   Travel- Z    1000 mm
   Table load maximum    1200 kgs
Click to enlarge


Click to enlarge

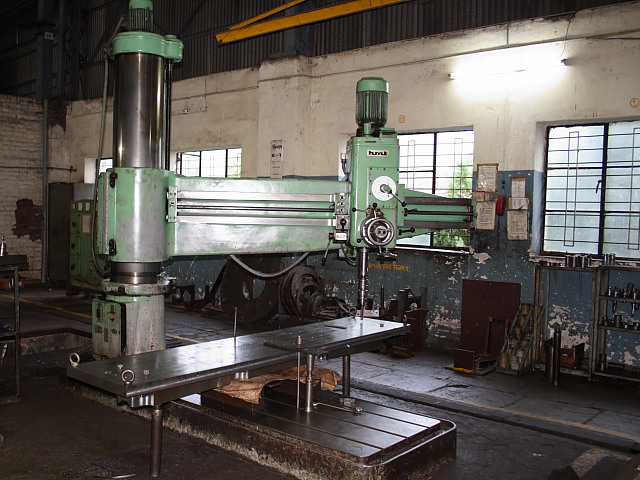

   Radial Drilling  m/c    HMT -  RM65
   Table size
   1800 mm X 1120 mm
   Travel– Vertical    2200 mm
   Travel- Spindle    1500 mm
   Working Depth    450 mm
   Spindle Dia    60 mm

INSPECTION

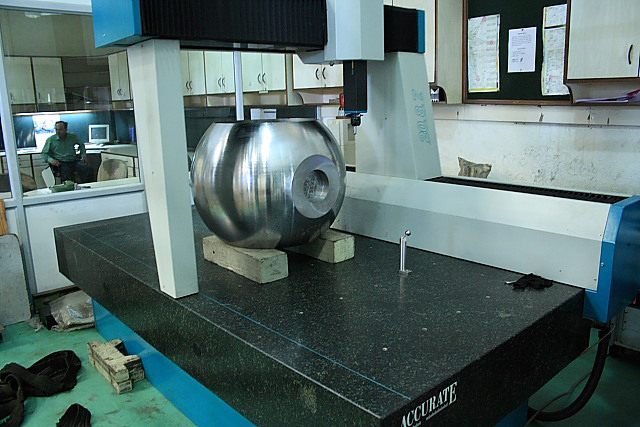

   Co-ordinate Measuring m/c    Accurate Cordimeasure 20.8.7
   Control
   CNC
   Probing system    RENISHAW
   Travel- X    2000 mm
   Travel- Y    800 mm
   Travel- Z    700 mm
   Max Load    1 ton
Click to enlarge

MATERIAL HANDLING FACILITIES

   Crane (overhead) with creep speed facility - ELECTROMECH
12.5 Tons
India
   Crane (overhead) with creep speed facility - ELECTROMECH
11 Tons
India
   Crane (overhead) - ELECTROMECH
5 Tons
India
